The most compact solution on the market.

The LightPad OTDR_ platform

is a monitoring solution that makes your business more intelligent, by automatically monitoring the physical state of multiple optical fibers lit along the routes, in any part of the network.

Discover all the benefits:

  • Continuous monitoring of up to 16 single-mode fibers, 100 kilometers or longer, anywhere in the network
  • Local or remote management of events that notifies you of any degradation of the monitored fibers, providing the geographic coordinates of the possible failure location so that repairs can be made quickly.
Contact us
LightPad OTDR
Features_

Features_

Rack space
Rack space

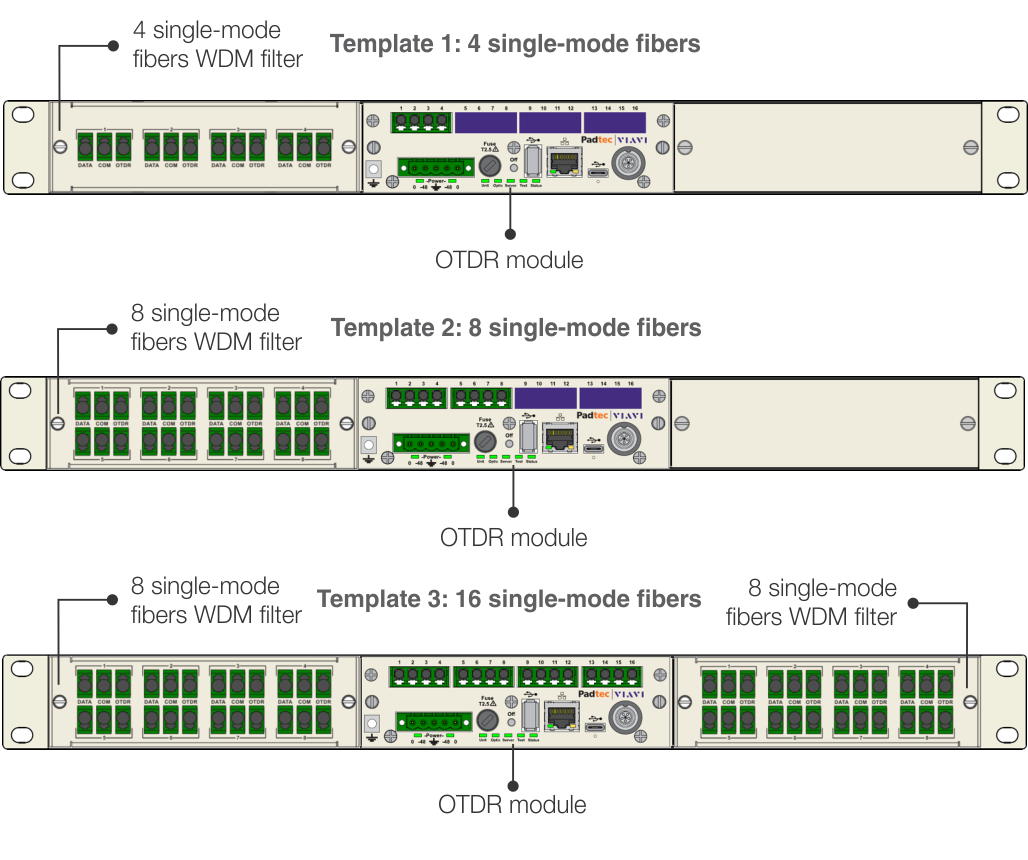

1RU rack-mounted unit with 3 slots for inserting up to 3 WDM or OTDR filter modules

Modular System
Modular System

Models to monitor 4, 8 or 16 active or dark optical fibers

Functionalities_

Functionalities_

Rack space
Rack space

1RU rack-mounted unit with 3 slots for inserting up to 3 WDM or OTDR filter modules

Modular System
Modular System

Models to monitor 4, 8 or 16 active or dark optical fibers

Scenario - DWDM Systems_

Scenario – DWDM Systems_

WDM filter with operating band for the entire C+ band (1260 to 1580 nm)

Configuration to bypass intermediate stations

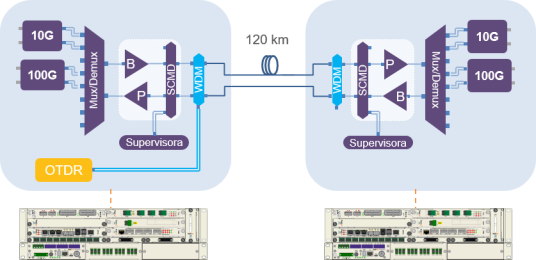

Scenario - DWDM Systems (Bypass)_

Scenario – DWDM Systems (Bypass)_

WDM filter with operating band for the entire C+ band (1260 to 1580 nm)

Configuration to bypass intermediate stations

Cenário - Sistemas Monocanais

Cenário – Sistemas Monocanais

WDM filter with operating band for gray signals (1310 to 1550 nm)

Configuration to bypass intermediate stations
